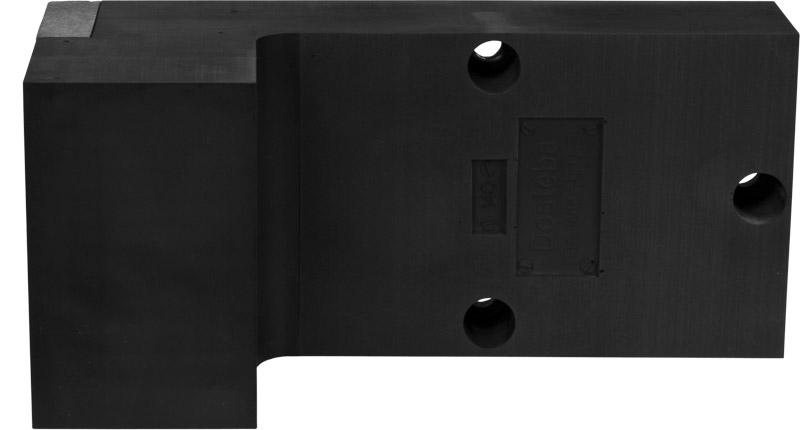

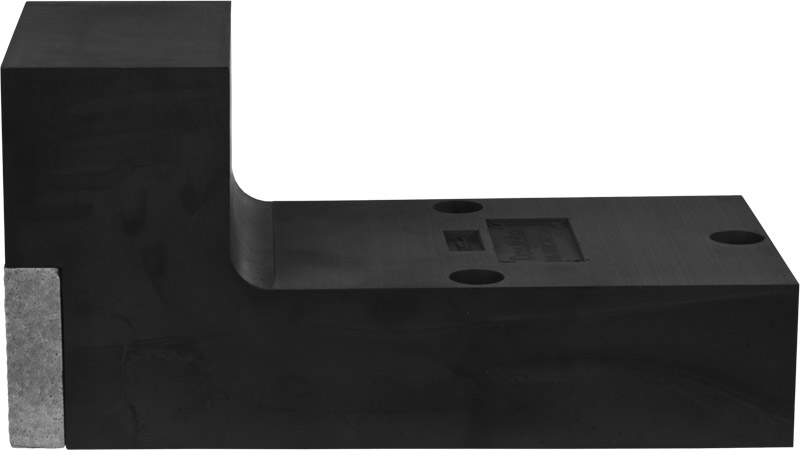

Supporting bracket TRA-WIK®-ALU-RL


Supporting brackets TRA-WIK®-ALU-RL are suitable for thermal bridge-free mounting in thermal insulation composite systems, rear-ventilated façades, interior insulations etc.

Description

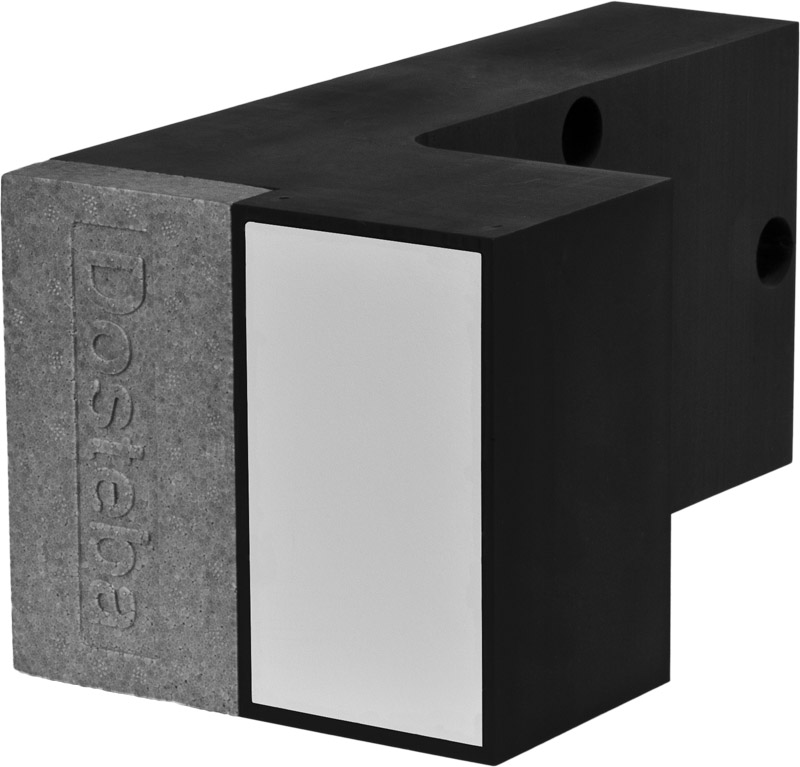

Supporting brackets TRA-WIK®-ALU-RL are made of black-coloured, rot-resistant and CFC-free, PU-rigid foam plastic (polyurethane) with a foamed steel sheet panel for the non-positive screw attachment with the anchorage, an aluminium plate for screwing the attachment part and a compact plate (HPL), which ensures optimum distribution of pressure on the surface.

Dimensions

Base surface: 280 x 125 mm
Types T: 80 - 300 mm
Compact plate: 117 x 65 x 6 mm
Useable surface area: 97 x 45 mm
Thickness aluminium plate: 6 mm
Hole distance: 100 x 100 mm
Volumetric weight PU: 350 kg/m³

Fastening material

Screw-plug: SXRL 10 x 100 FUS
Bore hole diameter: 10 mm
Drilling depth (min.): 80 mm
Anchorage depth (min.): 70 mm

Threaded rod: FIS A M8 x 110
Injection-mortar: FIS
Bore hole diameter: 10 mm
Drilling depth (min.): 60 mm
Anchorage depth (min.): 60 mm

Threaded rod: FIS A M8 x 130
Anchor sleeve: FIS H 12 x 85 K
Injection-mortar: FIS
Bore hole diameter: 12 mm
Drilling depth (min.): 95 mm
Anchorage depth (min.): 85 mm
