Description

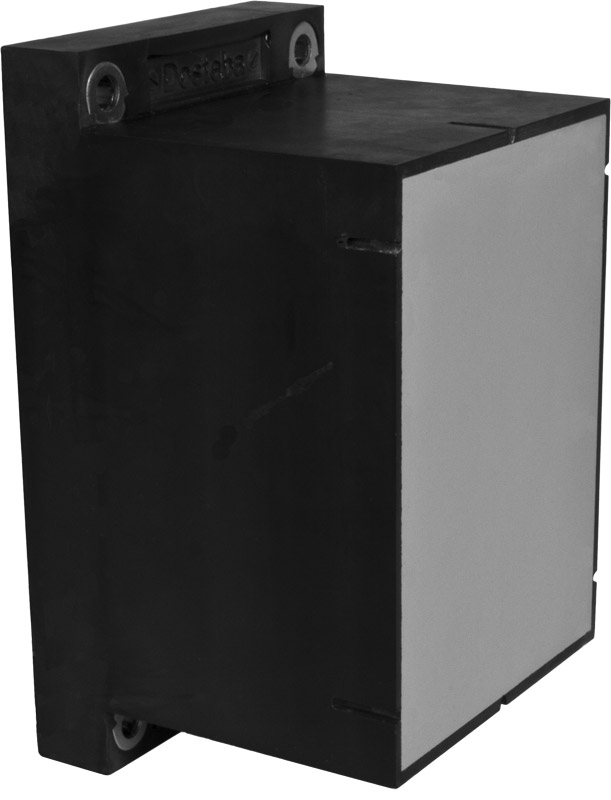

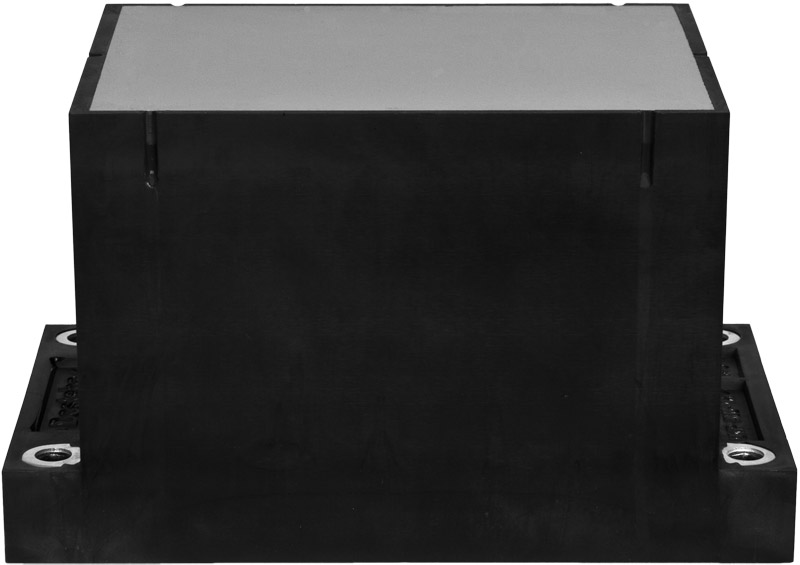

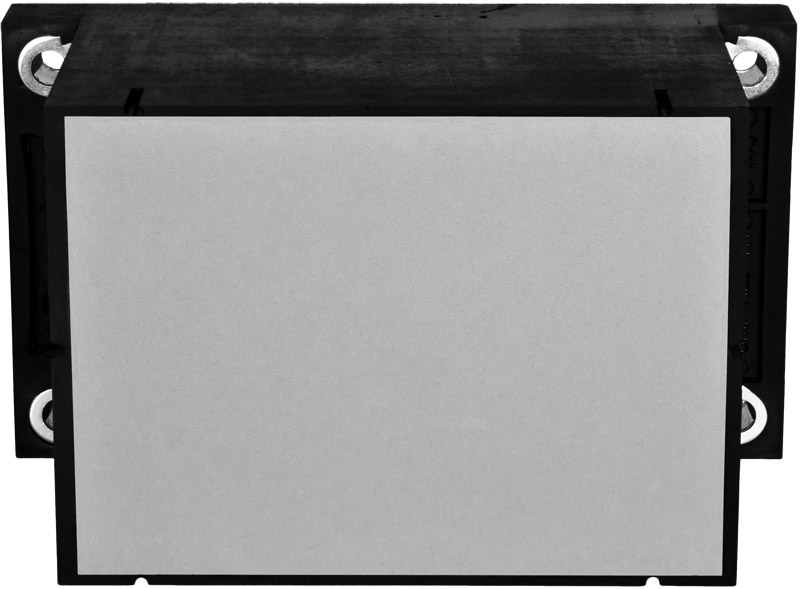

Universal fixation plates UMP®-ALU-TR are made of black-coloured, rot-resistant CFC-free PU-rigid foam (polyurethane) with four foamed steel consoles of fibre-reinforced plastic (polyamide) for friction-type screw assembly with the masonry, an aluminium plate for screwing the attachment part and a compact plate (HPL), to ensure optimum surface pressure distribution. Tension rods made of a low-fibre synthetic material (polyamide) guarantee the required stability.
Dimensions
| Base surface: |
238 x 138 mm |
| Thicknesses D: |
80 – 300 mm |
| Compact plate: |
182 x 132 x 10 mm |
| Useable surface area: |
162 x 80 mm |
| Thickness aluminium plate: |
12 mm |
| Hole distance: |
210 x 110 mm |
| Volumetric weight PU: |
350 kg/m³ |
Fastening material
| Screw-plug: |
SXRL 10 x 120 FUS |
| Bore hole diameter: |
10 mm |
| Drilling depth (min.): |
80 mm |
| Anchorage depth (min.): |
70 mm |
| |
|
| Threaded rod: |
FIS A M8 x 130 |
| Injection-mortar: |
FIS |
| Bore hole diameter: |
10 mm |
| Drilling depth (min.): |
60 mm |
| Anchorage depth (min.): |
60 mm |
| |
|
| Threaded rod: |
FIS A M8 x 150 |
| Threaded rod: |
FIS H 12 x 85 K |
| Injection-mortar: |
FIS |
| Bore hole diameter: |
12 mm |
| Drilling depth (min.): |
95 mm |
| Anchorage depth (min.): |
85 mm |
