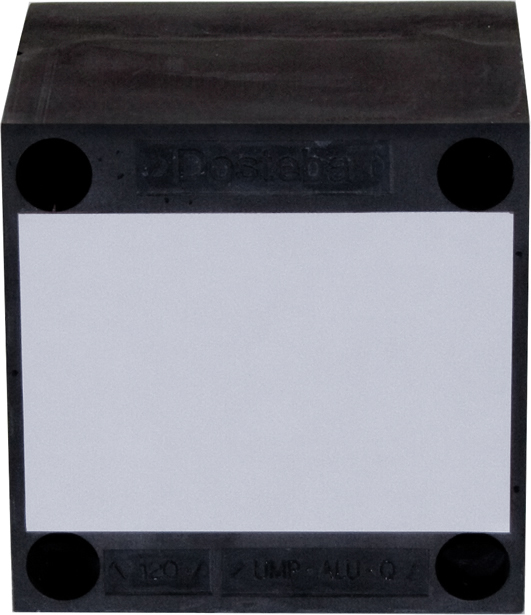

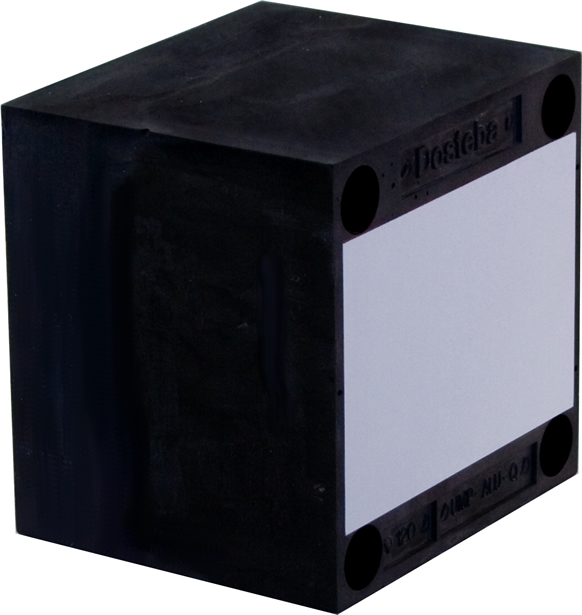

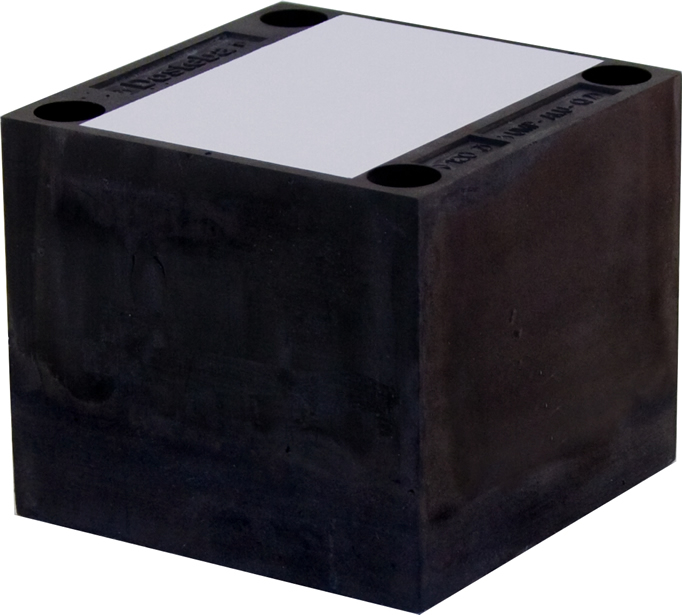

Universal fixation plate UMP®-ALU-Q


Universal fixation plates UMP®-ALU-Q are suitable for thermal bridge-free mounting in thermal insulation composite systems, rear-ventilated façades, interior insulations etc.

Description

Universal fixation plates UMP®-ALU-Q are made of black-coloured, rot-resistant and CFC-free, PU-rigid foam plastic (polyurethane) with a foamed steel sheet panel for the non-positive screw attachment with the anchorage, an aluminium plate for screwing the attachment part and a compact plate (HPL), which ensures optimum distribution of pressure on the surface. Fastening material will be supplied on request. EPS plugs to cover the drill holes are a part of our supply.

Dimensions

Surface area:138 x 138 mm
Thicknesses:60 - 300 mm
Compact plate:130 x 90 x 10 mm
Useful surface area:110 x 70 mm
Thickness aluminium plate:6 mm
Hole distance:110 x 110 mm
Volumetric weight PU:350 kg/m³

Fastening material for masonry

Screws: SXRL 10 x 100 FUS
Bore hole diameter: 10 mm
Recording tool: torx13, Torx T40

Fastening material for concrete

Screws: SXS 10 x 80 FUS
Bore hole diameter: 10 mm
Recording tool: torx13, Torx T40
