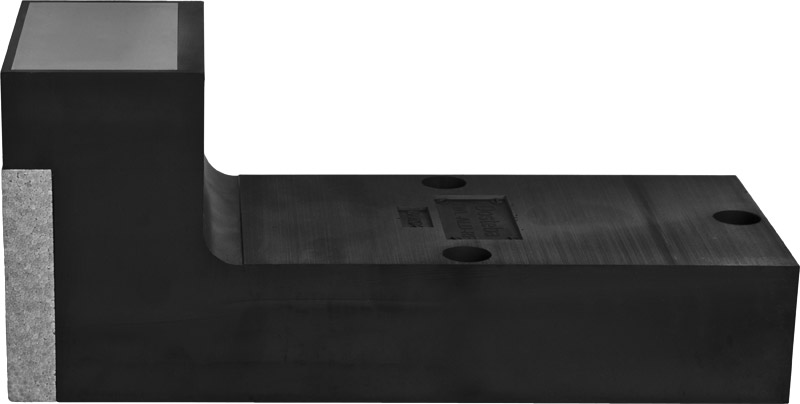

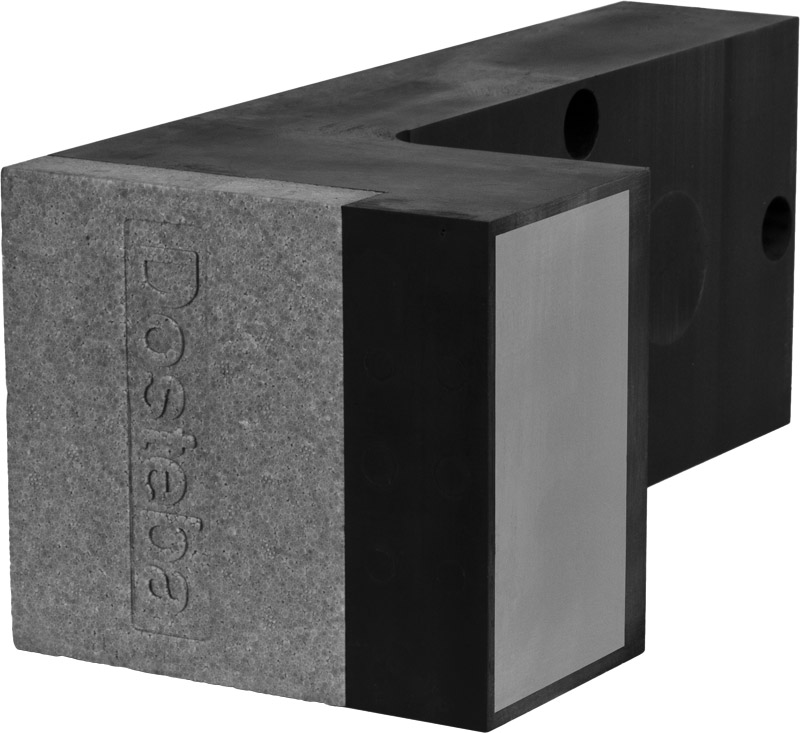

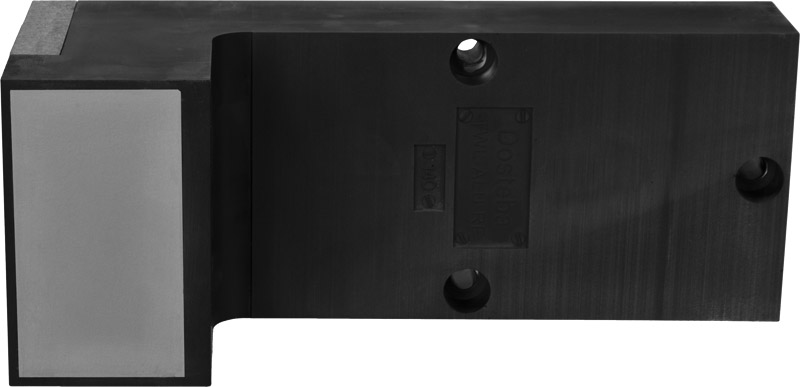

Supporting bracket TWL®-ALU-RF


Supporting brackets TWL®-ALU-RF are suitable for thermal bridge-free mounting in thermal insulation composite systems, rear-ventilated façades, interior insulations etc.

Description

Supporting brackets TWL®-ALU-RF are made of black-coloured, rot-resistant CFC-free PU-rigid foam (polyurethane) with one foamed steel sheet panel for the non-positive screw attachment with the anchorage, an aluminium plate for screwing the attachment part and a compact plate (HPL), which ensures optimum distribution of pressure on the surface.

Dimensions

Base surface: 320 x 125 mm
Types T: 80 - 300 mm
Compact plate: 117 x 65 x 6 mm
Useable surface area: 97 x 45 mm
Thickness aluminium plate: 6 mm
Hole distance: 120 x 100 mm
Volumetric weight PU: 450 kg/m³

Fastening material

Screw-plug: SXRL 10 x 120 FUS
Bore hole diameter: 10 mm
Drilling depth (min.): 80 mm
Anchorage depth (min.): 70 mm

Threaded rod: FIS A M8 x 130
Injection-mortar: FIS
Bore hole diameter: 10 mm
Drilling depth (min.): 60 mm
Anchorage depth (min.): 60 mm

Threaded rod: FIS A M8 x 150
Anchor sleeve: FIS H 12 x 85 K
Injection-mortar: FIS
Bore hole diameter: 12 mm
Drilling depth (min.): 95 mm
Anchorage depth (min.): 85 mm
