Fixation cylinder ZyRillo®-EPS


Fixation cylinder ZyRillo®-EPS are suitable for thermal bridge-free mounting in thermal insulation composite systems of expanded polystyrene (EPS) and rock wool (SW).

Description

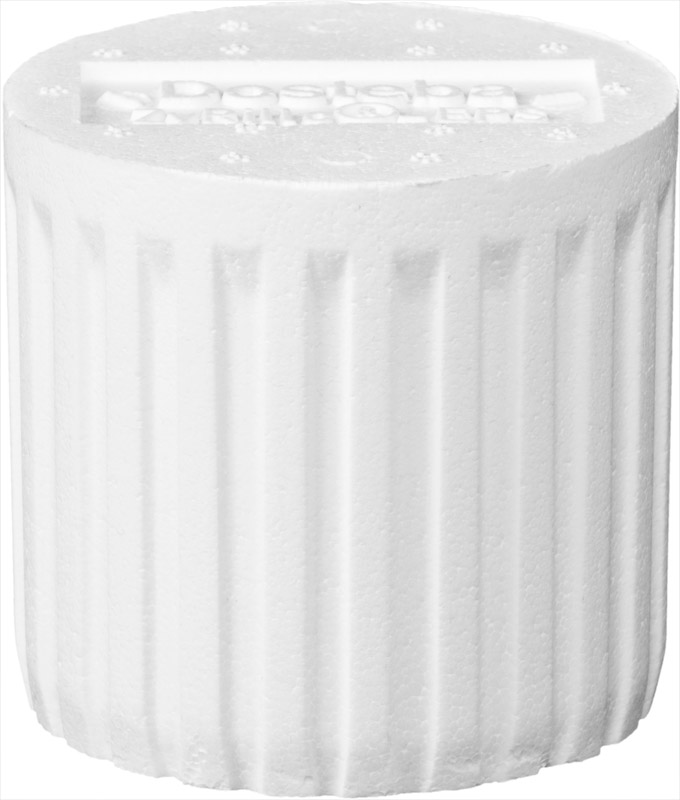

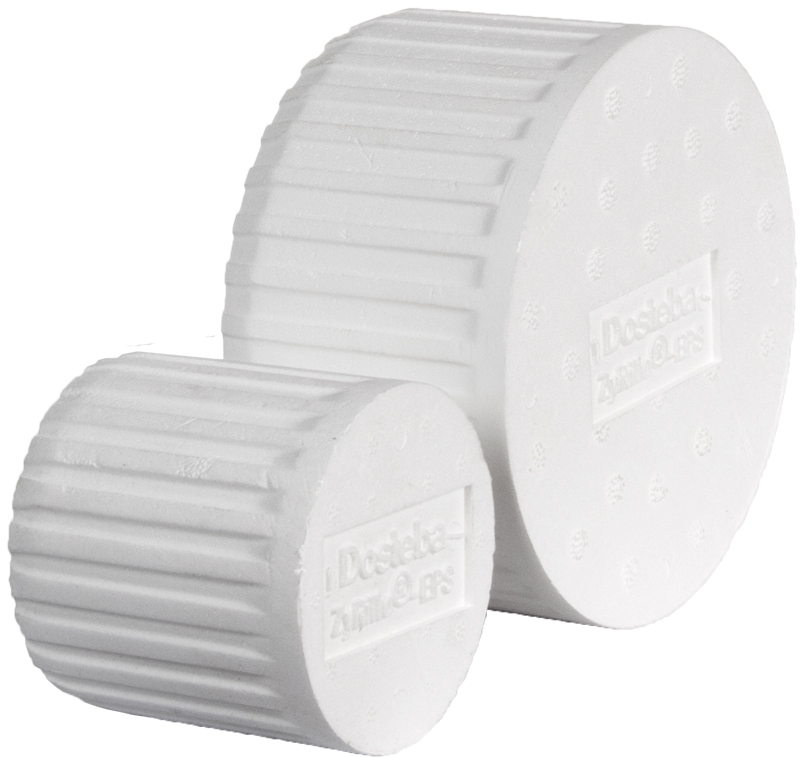

Fixation cylinders ZyRillo®-EPS are formfoamed cylinders made of EPS with a wave-like lateral surface and high volumetric weight. They are available in two different diameters.
Wood or sheet metal screws are suitable for the screw connections in fixation cylinder ZyRillo®-EPS, likewise, screws with cylindrical threads and larger pitch (e.g. frame screws).

Dimensions

Diameter:70 / 125 mm
Useful surface diameter:50 / 105 mm
Thickness:70 mm
Volumetric weight:170 kg/m3

Attachment

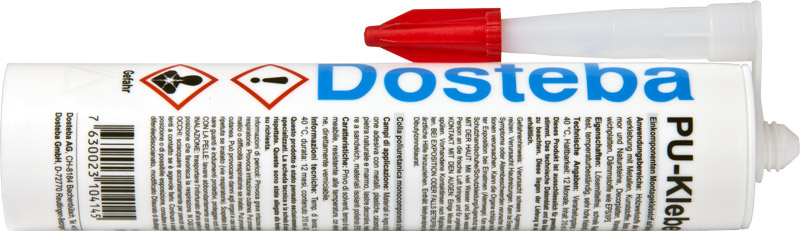

Adhesive:PU-Adhesive DoPurCol

Packaging units

Fixation cylinder per package:10 / 50 Unit
