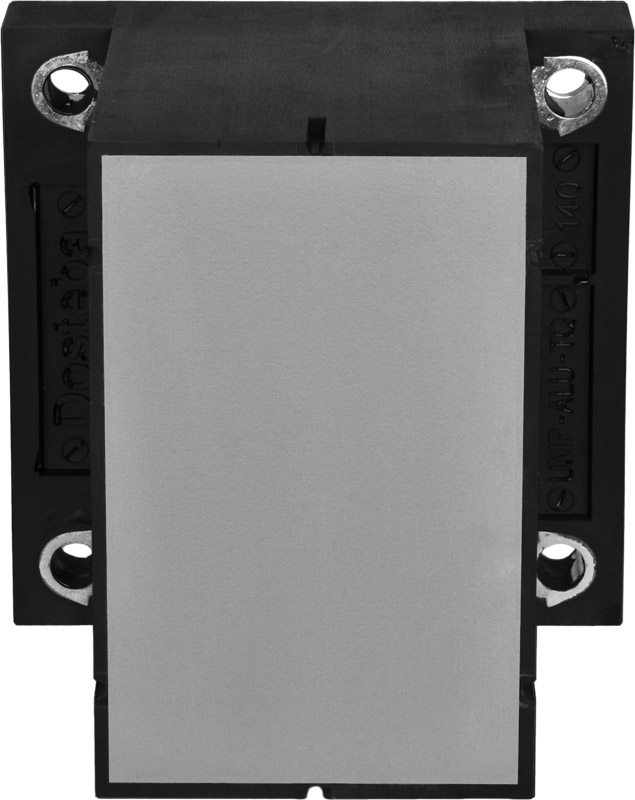

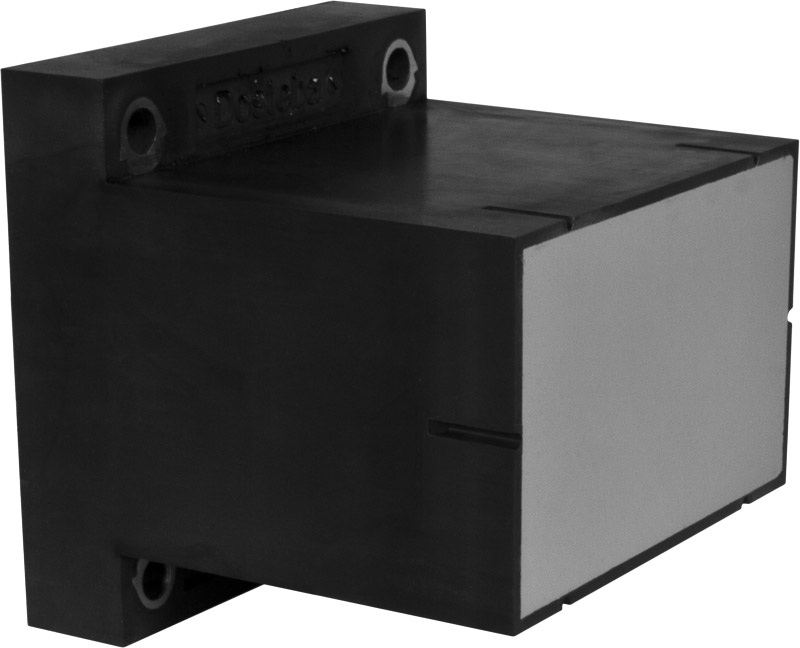

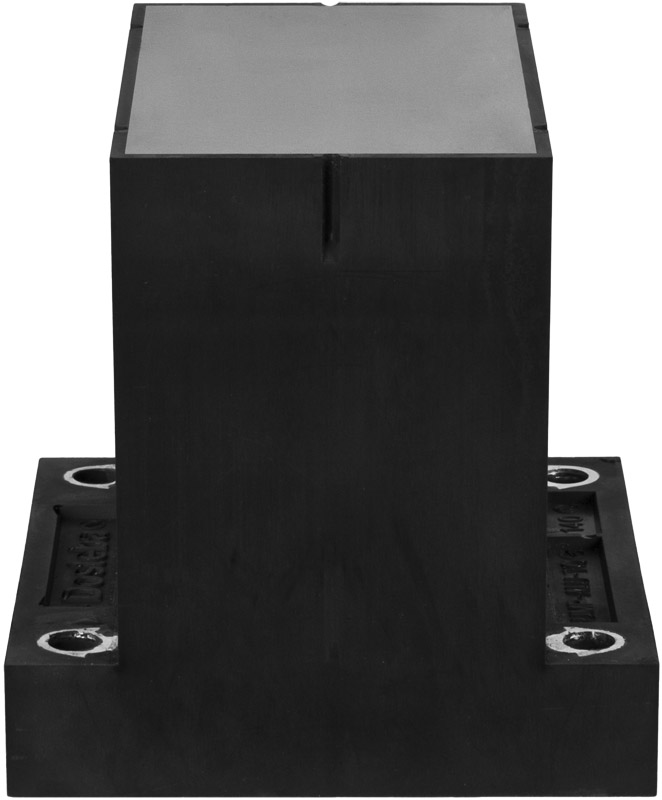

Universal fixation plate UMP®-ALU-TQ


Universal fixation plates UMP®-ALU-TQ are suitable for thermal bridge-free mounting in thermal insulation composite systems, rear-ventilated façades, interior insulations etc.

Description

Universal fixation plates UMP®-ALU-TQ are made of black-coloured, rot-resistant CFC-free PU-rigid foam (polyurethane) with four foamed steel consoles of fibre-reinforced plastic (polyamide) for friction-type screw assembly with the masonry, an aluminium plate for screwing the attachment part and a compact plate (HPL), to ensure optimum surface pressure distribution. Tension rods made of a low-fibre synthetic material (polyamide) guarantee the required stability.

Dimensions

Base surface: 138 x 138 mm
Thicknesses D: 80 – 300 mm
Compact plate: 132 x 84 x 10 mm
Useable surface area: 80 x 62 mm
Thickness aluminium plate: 12 mm
Hole distance: 110 x 110 mm
Volumetric weight PU: 350 kg/m³

Fastening material

Screw-plug: SXRL 10 x 120 FUS
Bore hole diameter: 10 mm
Drilling depth (min.): 80 mm
Anchorage depth (min.): 70 mm

Threaded rod: FIS A M8 x 130
Injection-mortar: FIS
Bore hole diameter: 10 mm
Drilling depth (min.): 60 mm
Anchorage depth (min.): 60 mm

Threaded rod: FIS A M8 x 150
Anchor sleeve: FIS H 12 x 85 K
Injection-mortar: FIS
Bore hole diameter: 12 mm
Drilling depth (min.): 95 mm
Anchorage depth (min.): 85 mm
